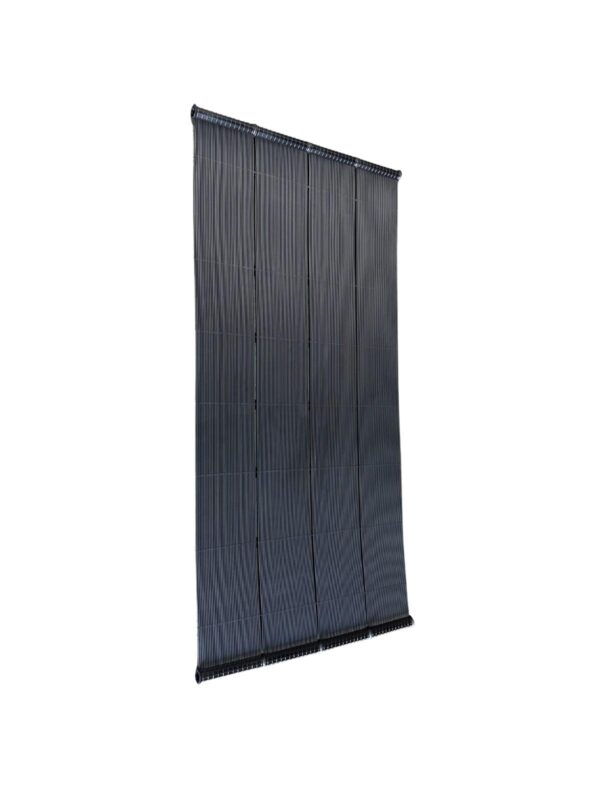

Suntrek ST Solar Collector Kits

Description

WHAT’S INCLUDED:

Each Kit Includes Everything You Need To:

• Install the selected number of solar panels in a single row.
• Mount each solar panel
• Make connections to and from each panel.
• Connect to the system’s supply and return plumbing lines.

The Following Components Are Included in Each DIY Kit:

Panel Kit: Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another. One (1) panel kit is included for each solar panel.

Each panel kit contains;

• (2) Gator Clamp, Top Header (Short)
• (2) Gator Clamp, Lower Header (Long)
• (2) PPC, Panel Clamp Assembly
• (8) Gator Clamp Screw

Row Kit: Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. One (1) row kit is included for each system.

Each row kit contains;

• (2) PPC, Panel Clamp Assembly
• (2) End Cap
• (2) Pipe Connector, CPVC

Vacuum Relief Valve Attachment Set: Contains the parts necessary to aid in gravity drainage of the panels and piping. One (1) set is included for each system.

Each vacuum relief valve attachment set contains;

• (1) Vacuum Relief Valve, 3/4″ MPT
• (1) Reducer Bushing, Spigot X FPT, 2″ X 0.75″
• (1) PVC Pipe Fitting, Tee, Slip X Slip X Slip, White, 2″
