How Solar Pool Heating Works

Home / Solar Pool Systems / How Solar Pool Heating Works

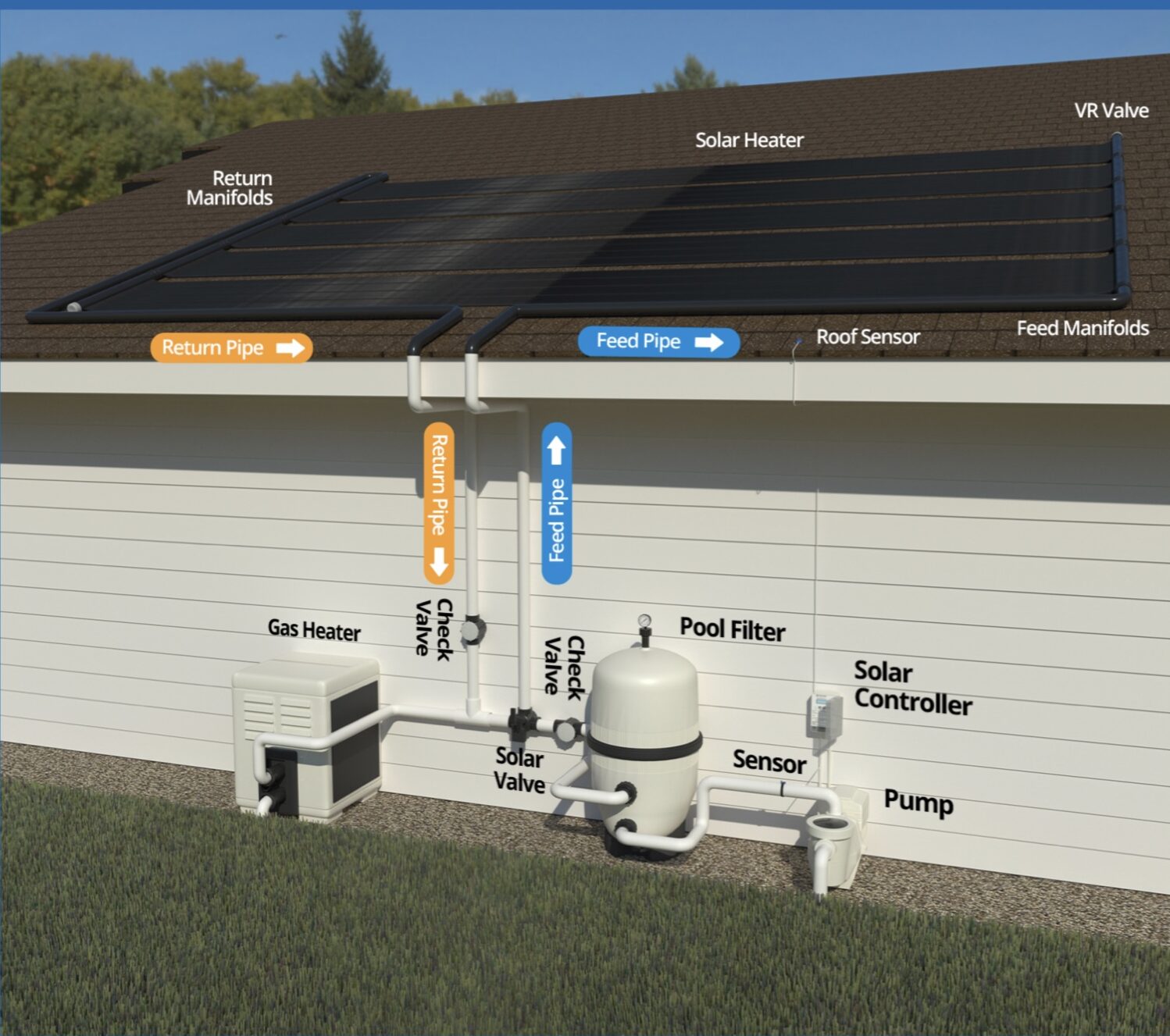

How Does a SUNTREK System Heat a Pool & Spa?

Your Suntrek solar pool heating system is thermostatically controlled. Simply set your
desired temperature on the controller.

It Heats for Free

Suntrek’s solar pool heaters work in partnership with your pool’s filtration pump to efficiently heat thousands of gallons of water in your pool and spa. It operates automatically and, with few moving parts, it is virtually maintenance free. Just set your preferred temperature and the system does the rest!

It Heats for Free

Suntrek’s solar pool heaters work in partnership with your pool’s filtration pump to efficiently heat thousands of gallons of water in your pool and spa. It operates automatically and, with few moving parts, it is virtually maintenance free. Just set your preferred temperature and the system does the rest!

Technical Facts:

Manifolds: Polypropylene
2” in diameter
28” long
72 channels

Water channel: ID = .190, OD = .333
Weight: Approx. 1 lb. per square foot empty 1 1/2 lbs FULL

Full Maximum operating temperature: 140º
Maximum operating pressure: 40 PSI
BTU rating: 1024 sq. ft./day
Made in the USA
Suntrek Manifold Patent DES.420,420
